| Width |
(106 mm) ,100 mm |
|---|---|
| Length |
(106 mm) ,100 mm |
| Height |
12 mm |
| Shape |
Circle |
| Frequency |
50 Hz ,60 Hz |
| Weight |
0,1 Kg |
| Supply Voltage |
230 VAC ,240 VAC |
| Power |
20 W |
| Maximum Current |
108mA |
| Flux |
2415lm |
XEC1003020SW

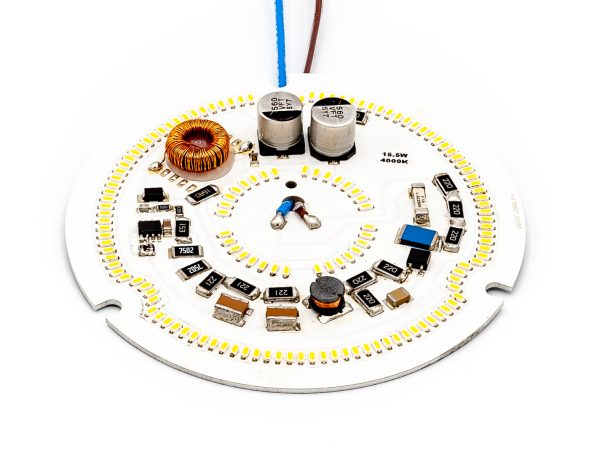

This Led Module is designed for standard interior and exterior light fixture and IS DIMMABLE WITH COMMERCIAL PHASE CUT DIMMERS.
Power absorption could be set according to Customer neeeds during production between 17W and 25W: Optimal Operating Point is set at 20W.
Involved technology is high power factor switching power supply with energy tank for Flicker Free operation.
Available Options: Cable type/lenght, CRI, Power
Engineered, manufactured, tested and cared in Italy.
Additional information
Shipping & Delivery
Related products
XEC1002717
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 12W and 20W: Optimal Operating Point is set at 17W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cable type/lenght, CRI, Power
Engineered, manufactured, tested and cared in Italy.
XEC40Q1002700°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 7W and 17.5W: Optimal Operating Point is set at 13W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC40Q1004000°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 7W and 17.5W: Optimal Operating Point is set at 13W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC4R03_4000°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 2W and 6W: Optimal Operating Point is set at 4W.
Involved technology is internal linear logic driving single step led string .
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC732700°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 8W and 20W: Optimal Operating Point is set at 17.6W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC733000FF
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 10W and 22W: Optimal Operating Point is set at 17.6W.
Involved technology is internal linear logic driving multistep led strings with energy tank for Flicker Free operation.
Available Options: Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC734000°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 8W and 20W: Optimal Operating Point is set at 17.6W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
XEC735000°K
This Led Module is designed for standard interior and exterior light fixture.
Power absorption could be set according to Customer neeeds during production between 8W and 20W: Optimal Operating Point is set at 17.6W.
Involved technology is internal linear logic driving multistep led strings.
Available Options: Cover, Cable type/lenght, CRI, Power
Engineered, manufactured, tested and assisted in Italy.
