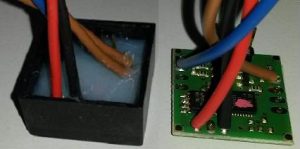

D243301
Dimmer for OEM or self standing application factory programmed to customer needs from a library of applications (dynamic white, two module fixture, single channel, double touch/button input, etc.).
If self standing is supplied in UL 94-0 compliant enclosure potted with silicon compounds and 0.1m cables.
Connections:
- Positive DC Supply
- Negative DC Supply
- Wire to be connected to Customer PAD/Push Button (max. 2 inputs)
- Return wire for Push Button
- Output logic signal 3.3V 100mA sink (max. 2 channels)
- Firmware options available (dynamic white, two independent led modules etc.)

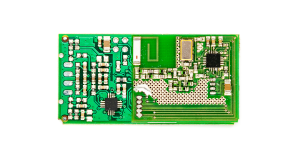

XECRFUP001
Controller for OEM or self standing application factory programmed to customer needs from a library of available applications (dynamic white, two module fixture, single channel, double touch/button input, signal transmission, sensors radio hub etc.).
If self standing version required is supplied in UL 94-0 compliant enclosure potted with silicon compounds and 0.1m cables.
Physical Connections:
- Positive DC Supply
- Negative DC Supply
- Wire to be connected to Customer device as inputs (max. 2)
- Output logic signal 3.3V 100mA or 24V max. serial communication interface (RS485, UART, I2C, DALI, DALI II)
- Firmware options available (dynamic white, two independent led modules etc., sensor interfacing, PC connection)
